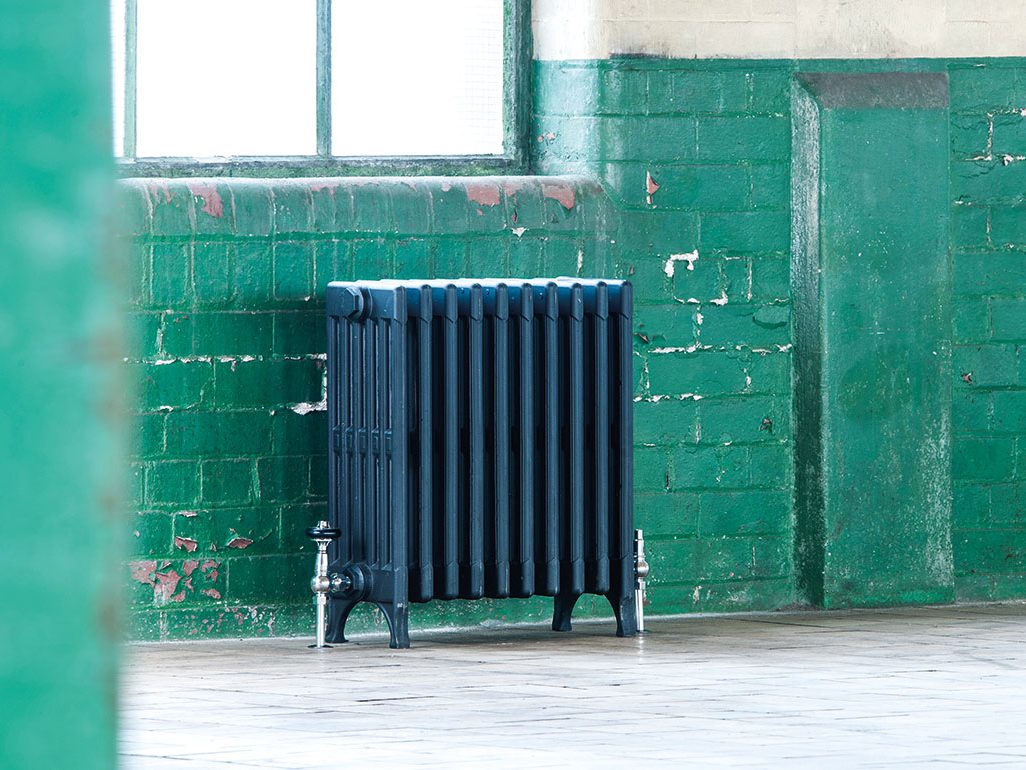

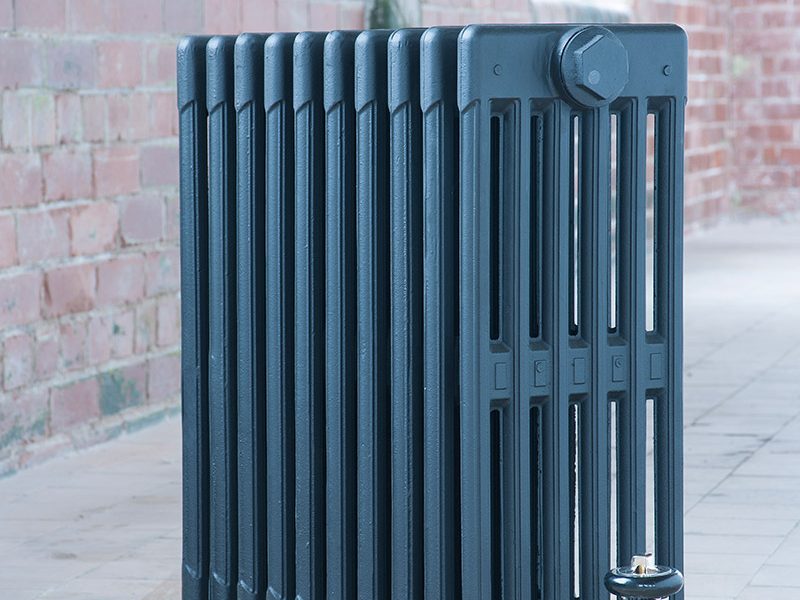

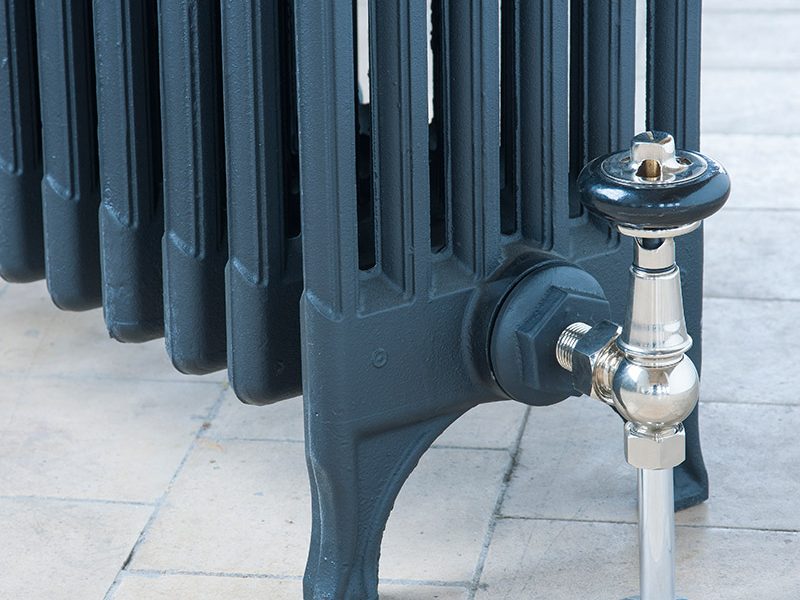

THE VICTORIAN – 6 COLUMN

Available in two heights and Styled to complement Arroll Victorian 4 column and two column cast iron radiators the six column adds that extra bit of heat output ideal for large areas were space is plentiful .

All our radiators are finished using a black primer. Alternately, if you wish, why not let us paint them from one of the thousands of Ral colours or our specialised finishes. Below are samples of the many colours that can be used to give you a classic, modern or contemporary look.

Simply ring your nearest dealer or download our brochure for full customisation options.

DIMENSIONS

LEG SECTION HEIGHT

625mm

MIDDLE SECTION HEIGHT

540mm

SECTION LENGTH

54mm

SECTION DEPTH

215mm

INLET & EXIT

480mm

BOTTOM INLET TO FLOOR

105mm

TOP INLET TO FLOOR

585mm

INLET TO SKIRTING

107.5mm

HEAT OUTPUT PER SECTION

DELTA ∆T 50˚C

107 Watts / 365BTUs

DELTA ∆T 60˚C

135 Watts / 460BTUs

WEIGHT

EMPTY WEIGHT PER LEG SECTION

8.3 Kgs

EMPTY WEIGHT PER MIDDLE SECTION

7.3 Kgs



*All measurements and sizes are approximate.

DIMENSIONS

LEG SECTION HEIGHT

925mm

MIDDLE SECTION HEIGHT

850

SECTION LENGTH

58mm

SECTION DEPTH

225mm

INLET & EXIT

790mm

BOTTOM INLET TO FLOOR

95mm

TOP INLET TO FLOOR

885mm

INLET TO SKIRTING

112.5mm

HEAT OUTPUT PER SECTION

DELTA ∆T 50˚C

166 Watts / 566BTUs

DELTA ∆T 60˚C

198 Watts / 675BTUs

WEIGHT

EMPTY WEIGHT PER LEG SECTION

13.5 Kgs

EMPTY WEIGHT PER MIDDLE SECTION

13 Kgs



*All measurements and sizes are approximate.

CLASSIC SUITE

*All RAL swatches below are examples and may not be true to colour shown here, please check with your dealer for a specific RAL colour.

RAL 1001

RAL 3002

RAL 3014

RAL 4002

RAL 5013

RAL 6004

RAL 7005

RAL 8008

MODERN SUITE

RAL 1028

RAL 2002

RAL 3005

RAL 8016

RAL 4006

RAL 5005

RAL 6025

RAL 7016

CONTEMPORARY SUITE

RAL 1006

RAL 1019

RAL 2009

RAL 3011

RAL 4008

RAL 5002

RAL 6032

RAL 7008
